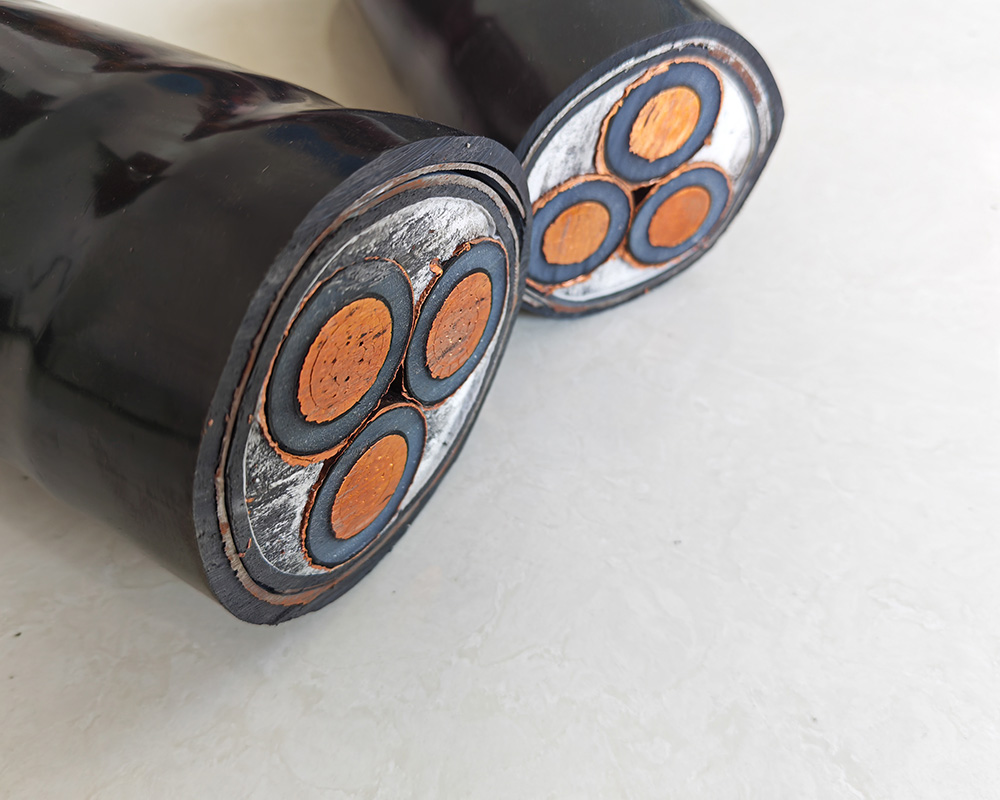

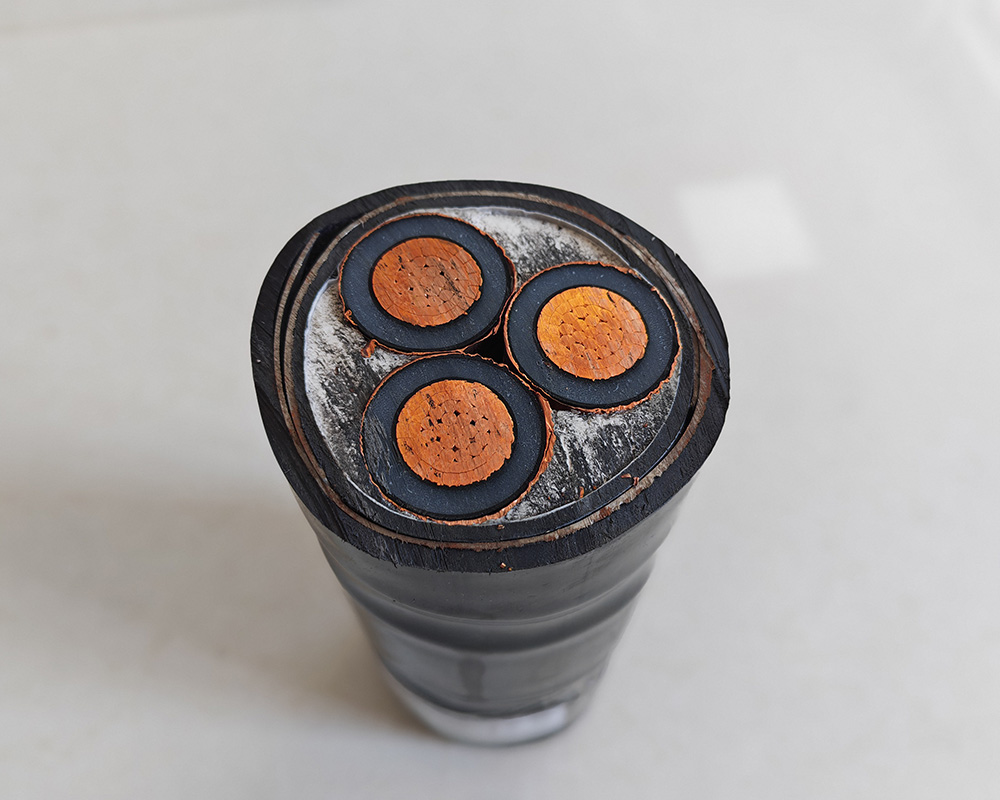

YJV22 Steel Tape Armoured Power Cable
YJV22
XLPE insulated steel-tape armoured cable for direct burial and protected routes.
HUAQI PRODUCT RANGEYJV22
Product image · final construction follows the approved order specificationPRODUCT OVERVIEW
Built around your
working conditions.
YJV22 adds steel-tape armour between the inner covering and PVC outer sheath. It is suitable for fixed installations requiring mechanical protection.
TECHNICAL DATA
Typical construction
Rated voltage0.6/1 kV and 8.7/15 kV options
ConductorClass 2 copper
InsulationXLPE
ArmourDouble steel tape
SheathPVC
Temperature90°C continuous; 250°C short circuit
Reference standardGB/T 12706 / IEC 60502
CertificationCE / CCC options by voltage and construction
Values are typical product-range data. Final conductor class, dimensions, resistance, water duty, temperature and compliance are confirmed in the approved datasheet.
TYPICAL APPLICATIONS
01Direct burial
02Underground trenches
03Industrial plants
04Substations
05Urban power grids
